Operating System · CS3423 · Fall 2026

Worksheet 3

This week, we will learn how a process is created and how it ends. Please read through the worksheet, complete the four walkthroughs, and use the self-check at the bottom to prepare for Sept 30's quiz.

Part 0Watch the lecture first

Part 1Where does a process come from?

When you open a new tab in Chrome, a new process is created. Chrome does not ask the OS to "create a process that runs the tab code," because Unix has no system call that does this directly. The way to create a new process is to call fork(), which copies the process that calls it. Chrome forks itself, and the copy becomes the process for the new tab.

Chrome intentionally uses a separate process for each tab. Remember isolation from last week: if one tab crashes, only its process ends. The browser and the other tabs continue to run. Every process on the machine was created in this way: an existing process called fork(). If you follow the chain of parent processes, you eventually reach PID 1, called init (the ancestor of all processes ). It is the first process that the kernel starts during boot. In modern Linux, systemd is usually the init.

$ pstree -p 1
systemd(1)-+-NetworkManager(893)
           |-accounts-daemon(1444)
           |-sshd(1602)---sshd(31007)---bash(31010)---pstree(31145)
           |-bluetoothd(1423)
           `-...

What the child inherits

After fork(), two processes, the parent and the child, continue running the same program from the same line.

The return value is the only information that each process can use to determine whether it is the parent or the child. This is why code that calls fork() usually has the following structure:

pid_t pid = fork();
if (pid > 0) {
    // I am the PARENT; pid is my child's PID
    printf("I created child %d\n", pid);
} else if (pid == 0) {
    // I am the CHILD
    printf("I am the child, my parent is %d\n", getppid());
} else {
    // fork failed: out of memory, or the per-user process limit was hit
    perror("fork");
}

Part 2The shell is fork + exec + wait

First, what is a shell? A shell is a program that reads a command line from you, runs the program you named, and prints a prompt when it is done. There are several popular shells, such as zsh, fish, and bash. bash is the default shell on most Linux systems.

A copy of the parent process is usually not the final result that you want. Chrome needs a process for a new tab, while bash may need to run gcc. Therefore, the child usually makes a second call, exec(), which replaces its current program with a new program in the same process. When you type gcc -o meow meow.c, the following steps occur within a few milliseconds:

1. bash reads your command line.
2. bash calls fork(), creating a second bash process.
3. child calls execvp("gcc", …). Its bash program is removed from memory, and the gcc program is loaded. The PID and open files remain the same, but the program is new.
4. bash calls waitpid(child) and sleeps. It does not use the CPU while it waits.
5. gcc reads meow.c, writes the meow executable, and calls exit(0).
6. kernel keeps gcc's exit code in the process table and wakes up bash.
7. bash receives the exit code from waitpid, stores it in $?, and displays a new prompt.

If exec succeeds, it never returns: the old program no longer exists, so there is nothing to return to. Therefore, code placed after execvp runs only if execvp fails, for example, because the requested program was not found.

Why two calls instead of one?

You might be wondering: if we want to create a process for a new program, why not use a single call?

Windows has a single CreateProcess() call with ten parameters and a large options structure. Unix instead uses two smaller calls. The important part is the time between the calls: after fork() but before exec(), the child is still running the parent's code. During this time, the code can prepare the child's environment before the new program starts:

• Where its output goes: ./test > out.txt works because bash's child redirects its own output to the file before calling exec. The new program never knows its stdout is a file.
• Who it runs as: a program running as root can fork, drop the child's privileges, and only then exec the real program, so it runs with the minimum privileges it needs.

Built-in commands

Try which cd in a Linux terminal. There is no separate cd executable on the machine, because it would not work as intended.

Part 3Telling the program what to do: arguments, environment, PATH

When the shell executes a program, it can pass two kinds of input: command-line arguments (argv, the words that follow the command) and environment variables (envp, a list of NAME=value strings that the child inherits from the parent). Choosing the correct kind of input is important.

Case study: where do you put an API key?

Suppose your program communicates with an AI model and needs an API key. There are three ways to provide the key:

A program can read an environment variable at run time, allowing it to access confidential information that was not available at compile time:

import getpass, os
if "OPENAI_API_KEY" not in os.environ:
    os.environ["OPENAI_API_KEY"] = getpass.getpass("Enter your OpenAI API key: ")

Docker uses the same approach. A container image cannot be changed after it is built, so it should not contain the password. Instead, the password is provided at run time as an environment variable using -e:

docker run --name some-postgres \
  -e POSTGRES_USER=myuser \
  -e POSTGRES_PASSWORD=mypassword \
  -e POSTGRES_DB=mydatabase \
  -d postgres

The postgres at the last line is the name of the container image, not the database or user name. POSTGRES_DB=mydatabase asks PostgreSQL to create a database named mydatabase, and -d tells Docker to run the PostgreSQL server in the background. The docker run command exits shortly after starting the container, but the PostgreSQL process continues to run. Docker provides the three values above as environment variables, and PostgreSQL reads them when it starts.

An environment variable changes behaviour without a command-line argument

The same command can behave differently when an environment variable changes. For example, this script checks whether STATION is set:

#!/usr/bin/env bash
if [[ -z "${STATION:-}" ]]; then
  echo "Listing all YouBike stations"
else
  echo "Showing station: $STATION"
fi

$ chmod +x ubike.sh
$ ./ubike.sh
Listing all YouBike stations
$ STATION="捷運科技大樓站" ./ubike.sh
Showing station: 捷運科技大樓站

STATION=… changes the environment of ubike.sh; it does not pass a command-line argument to the script.

PATH: how "ls" becomes "/usr/bin/ls"

Suppose you type ls in the shell, the kernel's execve() needs a full path to ls's binary file. The PATH environment variable contains a list of directories. It is the shell's responsibility to search them one by one in order. strace shows each attempt:

$ echo $PATH
/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin
$ strace -f -e trace=execve env ls -l              # env uses execvp, so we can watch the search
execve("/usr/local/sbin/ls", ["ls", "-l"], …) = -1 ENOENT (No such file or directory)
execve("/usr/local/bin/ls",  ["ls", "-l"], …) = -1 ENOENT (No such file or directory)
execve("/usr/sbin/ls",       ["ls", "-l"], …) = -1 ENOENT (No such file or directory)
execve("/usr/bin/ls",        ["ls", "-l"], …) = 0

which ls performs the same search and prints the first matching path. If you install a program but the shell still reports "command not found," the program's directory is probably not in PATH.

Part 4Exit, wait, and zombie processes

A process ends by calling exit(code) or by returning from main. The kernel immediately frees its memory and closes its files. However, the exit code must be delivered to the parent, so the kernel keeps the process's row in the process table until the parent calls wait().

Background jobs: ./server &

When you use &, bash calls fork and exec as usual, but it does not block in waitpid. Therefore, the prompt returns immediately. When the child exits, the kernel sends bash the SIGCHLD signal, and bash calls waitpid in its signal handler. As a result, a background job remains a zombie for only a few microseconds. We will study signals in a later week.

Case study: how PTT stayed alive in a dormitory

Suppose you use ssh to connect to a server, start a long training job, and then go home. If your network connection is lost, the program may be killed. The program is a child of your shell, so it can end when the terminal and everything attached to it are closed. In the 1990s, PTT ran on Ethan Tu's PC in an NTU dormitory and was started manually from a terminal. To continue running after the administrator logged out, its login server called a daemonize() function that performed five steps:

1. fork(): the parent exits, the child keeps running in the background.
2. setsid(): the child starts a new session with no terminal attached.
3. fork() again: this is the double fork. It prevents the process from accidentally acquiring a terminal again, and it makes init the process's parent.
4. Redirect stdin, stdout, and stderr to /dev/null or a log file. A daemon has no screen, so its errors must be written to a file.
5. Write a PID file so administrators can find and stop it later.

Today: use systemd instead of writing this code yourself. On a modern server, you rarely write daemonize(). Instead, you write a service unit. Systemd, which is PID 1, handles the fork, redirection, environment, restart after a crash, and log capture:

[Service]
ExecStart=/usr/local/bin/myapp
Environment="API_KEY=sk-XXX"
Restart=always

Look again at the pstree output in Part 1. Databases, web servers, and the ssh daemon all appear directly below systemd(1). Now you know why. 😃

Part 5How many processes?

Consider the following two programs. Remember that every process that reaches fork() creates a child, and each child inherits the loop variable.

// loop.c
int main(void) {
    char *letters = "ABC";
    for (int i = 0; i < 3; i++) {
        printf("%d prints %c\n", getpid(), letters[i]);
        fork();
    }
    printf("%d finished\n", getpid());
    return 0;
}

// twice.c
int main(void) {
    pid_t pid1 = fork();
    pid_t pid2 = fork();
    if (pid1 != 0 && pid2 != 0)
        printf("Meow!\n");   // A
    if (pid2 != 0)
        printf("Ah!\n");     // B
    return 0;
}

Part 6The Unix philosophy: everything is a file

3 AM at TSMC Fab 2

Imagine that it is the early 2000s and you maintain hundreds of Windows servers for TSMC. At 3 AM, you receive a call: some servers are down, and you suspect that the air conditioning in one server room has failed. You need to identify the room and the affected machines. Checking 500 machines through a GUI requires repeating the same clicks 500 times. On Unix, one command is enough:

for i in server{1..500}; do
    echo -n "$i: "
    ssh $i "cat /sys/class/thermal/thermal_zone0/temp"
done | sort -n -k2 | tail -n2

1. In this command, the CPU temperature sensor is represented as a file (a virtual file that doesn't store any data), so cat can read it. This shows us Unix's principle: Everything is a file. Running processes are represented by files under /proc, and disks are represented by files under /dev. In fact, recall that last week you used ls /proc/[PID]/fd to show a deleted file that a process still had open.
2. Another Unix principle is: Each program does one thing well, and multiple programs work together. ssh, cat, sort, and tail do not need to know anything about one another. They use only one common interface: a stream of plain text. This is exactly the idea behind shell scripting: a shell script connects small programs instead of implementing every task itself. (Lampson, Hints and Principles for Computer System Design, 3.2.1.)

The Windows approach

For twenty years, Microsoft's strategy was different: Microsoft provided a GUI tool for each task, while scripting received less attention. Windows administrators worked in this environment. In the mid-2000s, Microsoft engineer Jeffrey Snover argued that enterprise automation requires scripts rather than repeated mouse clicks. Despite doubts from management, he built PowerShell. His idea proved successful, and PowerShell became essential to Azure in the 2010s.

Microsoft, the company behind Windows, once saw Linux as a rival. Today it is one of the biggest contributors to the Linux Foundation, and its cloud, Azure, runs one of the largest Linux fleets on the planet. The Unix way of running servers won, even inside Microsoft.

One important difference remains. PowerShell passes .NET objects between commands, providing a structured API. Unix passes unstructured text. As Peter Salus wrote, "text streams are a universal interface": programs written in any language can read and write them. In two weeks, you will learn how the kernel connects these streams using pipes.

Part 7Static and dynamic linking: what exec actually loads

In walkthrough 1, execve loaded /usr/bin/ls into the child. The file contains less code than you might expect. The ldd command lists the libraries that a program needs at run time:

$ ls -l /bin/ls
-rwxr-xr-x 1 root root 142312 Aug 25 23:09 /bin/ls               # 142 KB
$ ldd /bin/ls
        libselinux.so.1 => /lib/x86_64-linux-gnu/libselinux.so.1
        libc.so.6 => /lib/x86_64-linux-gnu/libc.so.6              # 2.1 MB, and not inside ls
        libpcre2-8.so.0 => /lib/x86_64-linux-gnu/libpcre2-8.so.0
        /lib64/ld-linux-x86-64.so.2                               # the dynamic loader itself

ls is 142 KB. The 2.1 MB C library that provides functions such as printf and opendir is stored in a separate file. After execve but before main, a small program called the dynamic loader finds the required library files and maps them into the process. This section explains what happens during that period.

Linking is the process of combining a program with the libraries it uses. The library code can be copied into the program (this is called static linking), or the program can contain a reference to a library that will be found when the program runs (this is called dynamic linking).

Suppose your program, app1.c, calls meow(). The code for this function is in the libmeow library, which is installed in /usr/lib. The compiler translates your code but leaves a missing address where the address of meow() should be. Linking is the action of filling in this address.

How processes share a library

This memory sharing uses the same mechanism that you saw in Worksheet 2: entries in many page tables point to one physical frame. Library code is read-only, so each process does not need a separate copy. The following measurements from the instructor's Linux desktop show the percentage of running processes that map each library and the amount of memory saved through sharing:

This is why Linux distributions provide almost everything as shared libraries: one copy of libc can serve every process on the machine.

So which one should you use?

The following examples show when each approach is useful.

• Heartbleed, 2014. A bug in OpenSSL allowed attackers to read a server's memory. Ubuntu fixed the problem by distributing one new libssl.so. After a restart, every dynamically linked program on an updated machine used the fixed library. Programs that had statically linked OpenSSL remained vulnerable until each vendor rebuilt and redistributed them. A library used by many programs should usually be shared.
• fzf, ripgrep, Docker. Command-line tools written in Go and Rust are often distributed as a single static binary. You can download one file, run chmod +x, and use it on any Linux machine. There is no missing .so and no "version GLIBC_2.34 not found" error when the machine has an older libc than the build machine. A tool distributed to many different machines is often safer as a static binary.

Self-checkLearning goals

Check each item that you can complete without referring to the worksheet. The Sept. 30 quiz covers the following topics. (Your progress is saved only in this browser.)

• I understand how fork creates a process, what the child inherits (memory, open files, and position in the program), and how the return value distinguishes the parent from the child.
• I understand what exec replaces, what it keeps (PID, PPID, and open files), and why a successful exec never returns.
• I understand how the shell runs a command: fork, exec in the child, and waitpid in the parent. I also understand why cd must be a built-in command (Walkthrough 1).
• I understand why Unix separates fork and exec: between the two calls, the child can change where its output goes and who it runs as before the new program starts.
• I understand the purpose of environment variables, and why a secret belongs in one rather than in the code or on the command line.
• I understand what the PATH variable does, and that the shell, not the kernel, searches the directories listed in it.
• I understand zombie, orphan, and daemon processes, how wait reaps a zombie, how the double fork works, and how a background job (&) is reaped (Walkthrough 2).
• I can count the processes and output lines produced by a program that forks in a loop or forks twice in a row (Walkthrough 3).
• I understand the two Unix principles, everything is a file and each program does one thing well, why programs pass plain text between them, and how that compares with PowerShell's objects.
• I understand the difference between static and dynamic linking: what happens at build time and at run time, how processes share one library in DRAM, and when each approach is more suitable (Walkthrough 4).

Reset checklist

AttributionCredits

• The course illustrations of Nini are NTHU CS Operating Systems course material (Tony Chen / Yun-Chih Chen), licensed under CC BY 4.0. The cat art is from Freepik and ChatGPT.
• "Animated GNU Bash Unix Shell Prompt" by Kxxvii, Wikimedia Commons, CC0.

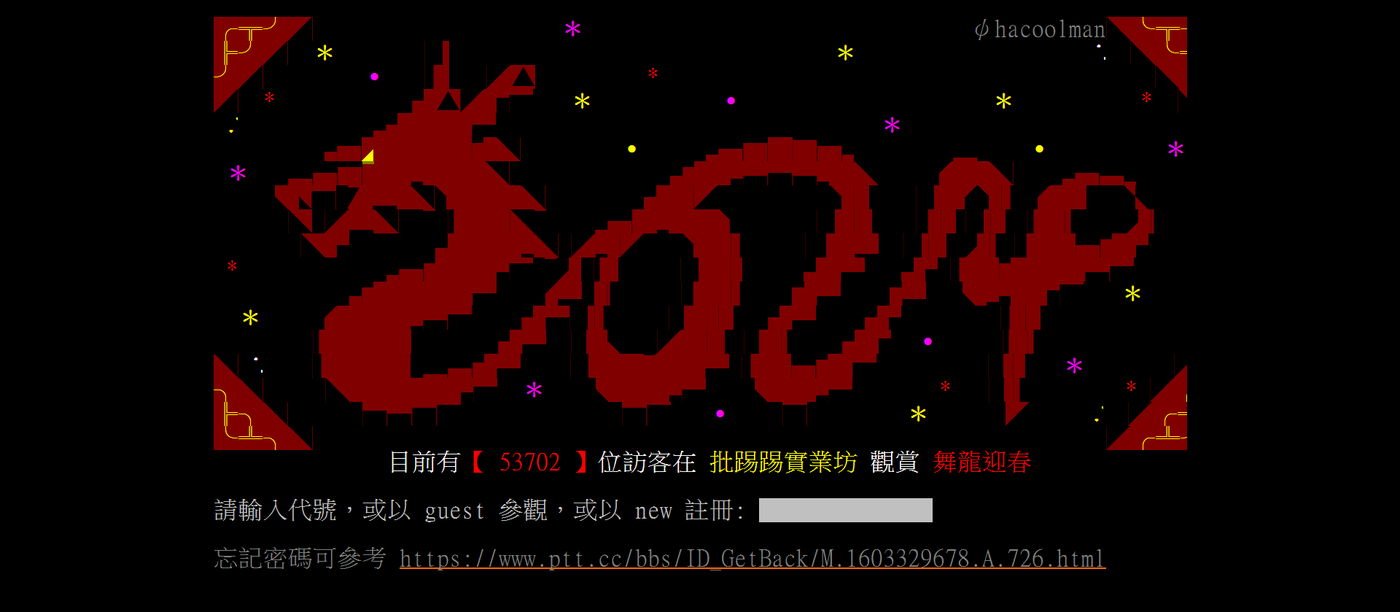

• The "PTT login screen" (June 2024) is a screenshot of the GPL-licensed pttbbs, with ANSI art signed by hacoolman. Source: Wikimedia Commons, GPL.
